ELK 설치 (with Azure Blob)

• Azure 방화벽 및 Application GW (L7) 로그를 보다 쉽게 확인하기 위해 ELK를 구성한다
• Azure 환경에서 진행한다

  • 테스트를 위해 1대 서버로 구성한다
  • 로그는 Azure Blob에 적재되며 Logstash와 연동한다
  • IP 및 Key 노출을 대비해 일부 정보는 공개하지 않음



1. ELK 설치 및 셋팅

$ yum -y install java-1.8.0-openjdk java-1.8.0-openjdk-devel

$ vi /etc/profile
##jdk path##
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.102-1.b14.el7_2.x86_64
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/jre/lib:$JAVA_HOME/lib:$JAVA_HOME/lib/tools.jar

$ source /etc/profile

$ /etc/yum.repos.d/
#vi elasticsearch.repo
[elasticsearch-6.x]
name=Elasticsearch repository for 6.x packages
baseurl=https://artifacts.elastic.co/packages/6.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
sslverify=0 #필요시
autorefresh=1
type=rpm-md

$ vi logstash.repo
[logstash-6.x]
name=Elastic repository for 6.x packages
baseurl=https://artifacts.elastic.co/packages/6.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
sslverify=0 #필요시
autorefresh=1
type=rpm-md

$ vi kibana.repo
[kibana-6.x]
name=Kibana repository for 6.x packages
baseurl=https://artifacts.elastic.co/packages/6.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
sslverify=0 #필요시
autorefresh=1
type=rpm-md


$ yum -y install elasticsearch
$ yum -y install logstash
$ yum -y install kibana


[Elasticsearch 설정]
$ vi /etc/elasticsearch/elasticsearch.yml

# ---------------------------------- Network -----------------------------------
#
# Set the bind address to a specific IP (IPv4 or IPv6):
#
network.host: 0.0.0.0
#
# Set a custom port for HTTP:
#
http.port: 9200
#
# For more information, consult the network module documentation.
#

[Kibana 설정]
$ vi /etc/kibana/kibana.yml

# Kibana is served by a back end server. This setting specifies the port to use.
server.port: 5601

# Specifies the address to which the Kibana server will bind. IP addresses and host names are both valid values.
# The default is 'localhost', which usually means remote machines will not be able to connect.
# To allow connections from remote users, set this parameter to a non-loopback address.
server.host: "0.0.0.0"

# The URLs of the Elasticsearch instances to use for all your queries.
elasticsearch.hosts: ["http://localhost:9200"]


[Logstash Azure Plugin 설치]
/usr/share/logstash/bin/
#./logstash-plugin install logstash-input-azureblob


[Logstash 설정 (azure Blob with nsg log)]
$ vi /etc/logstash/conf.d/default.conf

input {
   azureblob
     {
         storage_account_name => "azuremgmtdiagsa"
         storage_access_key => "xxxxxxxxxxxxxxxxxxxxxxx"
         container => "insights-logs-networksecuritygroupflowevent"
         codec => "json"
         # Refer https://docs.microsoft.com/azure/network-watcher/network-watcher-read-nsg-flow-logs
         # Typical numbers could be 21/9 or 12/2 depends on the nsg log file types
         file_head_bytes => 12
         file_tail_bytes => 2
         # Enable / tweak these settings when event is too big for codec to handle.
         # break_json_down_policy => "with_head_tail"
         # break_json_batch_count => 2
     }
   }

   filter {
     split { field => "[records]" }
     split { field => "[records][properties][flows]"}
     split { field => "[records][properties][flows][flows]"}
     split { field => "[records][properties][flows][flows][flowTuples]"}

  mutate{
   split => { "[records][resourceId]" => "/"}
   add_field => {"Subscription" => "%{[records][resourceId][2]}"
                 "ResourceGroup" => "%{[records][resourceId][4]}"
                 "NetworkSecurityGroup" => "%{[records][resourceId][8]}"}
   convert => {"Subscription" => "string"}
   convert => {"ResourceGroup" => "string"}
   convert => {"NetworkSecurityGroup" => "string"}
   split => { "[records][properties][flows][flows][flowTuples]" => ","}
   add_field => {
               "unixtimestamp" => "%{[records][properties][flows][flows][flowTuples][0]}"
               "srcIp" => "%{[records][properties][flows][flows][flowTuples][1]}"
               "destIp" => "%{[records][properties][flows][flows][flowTuples][2]}"
               "srcPort" => "%{[records][properties][flows][flows][flowTuples][3]}"
               "destPort" => "%{[records][properties][flows][flows][flowTuples][4]}"
               "protocol" => "%{[records][properties][flows][flows][flowTuples][5]}"
               "trafficflow" => "%{[records][properties][flows][flows][flowTuples][6]}"
               "traffic" => "%{[records][properties][flows][flows][flowTuples][7]}"
                }
   convert => {"unixtimestamp" => "integer"}
   convert => {"srcPort" => "integer"}
   convert => {"destPort" => "integer"}
  }

  date{
    match => ["unixtimestamp" , "UNIX"]
  }
 }
output {
  stdout { codec => rubydebug }
  elasticsearch {
    hosts => "localhost"
    index => "nsg-flow-logs"
  }
}


$ systemctl start elasticsearch.service
$ systemctl start logstash
$ systemctl start kibana start

## Logstash Configuration Check ##
# sudo -u logstash /usr/share/logstash/bin/logstash --path.settings /etc/logstash -t
Sending Logstash's logs to /var/log/logstash which is now configured via log4j2.properties
Configuration OK

## Logstash > ES 데이터 PUT 확인 ##
curl -XGET '10.2.211.58:9200/indexname/_search?pretty'
curl -XGET '10.2.211.58:9200/forti_checkin_log/_search?pretty'

## 정상적으로 들어가는지 확인 ##
$ curl 10.2.211.58:9200/_cat/indices?v
health status index               uuid                   pri rep docs.count docs.deleted store.size pri.store.size
yellow open   forti_checkin_log   n86P-dZDRYCQVStIC0mNIw   5   1          9            0     63.7kb         63.7kb
yellow open   test_index          sNk5gZYaR7yd8xJQu8YhCw   5   1          7            0     54.5kb         54.5kb
yellow open   clg_pageview_log    tRC3ikmIQ3aGtxBaJ-rZXg   5   1       1342            0    434.1kb        434.1kb
yellow open   clg_content_search  IdRZzh1PSvSH9fup8l0sXg   5   1        306           14    481.7kb        481.7kb
yellow open   erms_integration    UU9obVsORv-vt-7y6Grv2Q   5   1        154            8      2.9mb          2.9mb
yellow open   deptinfo_search     vjMw7j5CTsa7n2oMdGgzWQ   5   1        668            0      4.2mb          4.2mb

## Logstash 로컬 로그 저장 ##
output {
        elasticsearch {
         hosts => "10.2.211.58:9200"
         index => "forti_checkin_log"
           }
        file {
         path => "/var/log/logstash/test.log"
           }
        stdout { codec => rubydebug }
}

## ES 정상 여부 확인 ##
$curl localhost:9200
{
  "name" : "8cZrOJJ",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "-EfWl3cARQqccC6OvfTLFg",
  "version" : {
    "number" : "6.8.8",
    "build_flavor" : "default",
    "build_type" : "rpm",
    "build_hash" : "2f4c224",
    "build_date" : "2020-03-18T23:22:18.622755Z",
    "build_snapshot" : false,
    "lucene_version" : "7.7.2",
    "minimum_wire_compatibility_version" : "5.6.0",
    "minimum_index_compatibility_version" : "5.0.0"
  },
  "tagline" : "You Know, for Search"
}



2. Kibana

• kibana 접속해본다 (http://ip:5601)

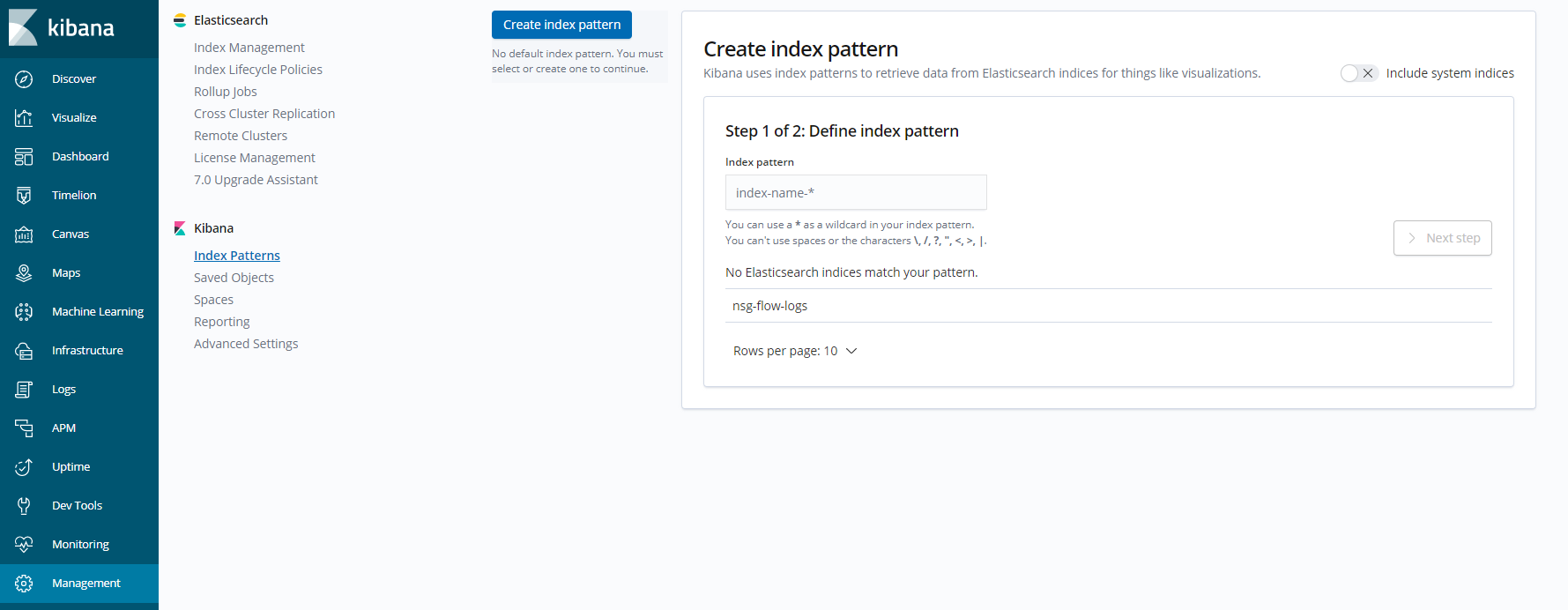

• 패턴추가

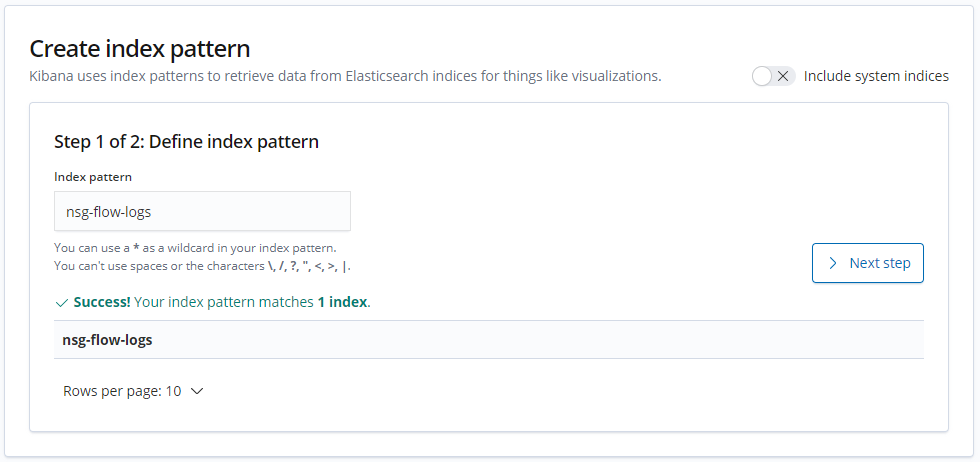

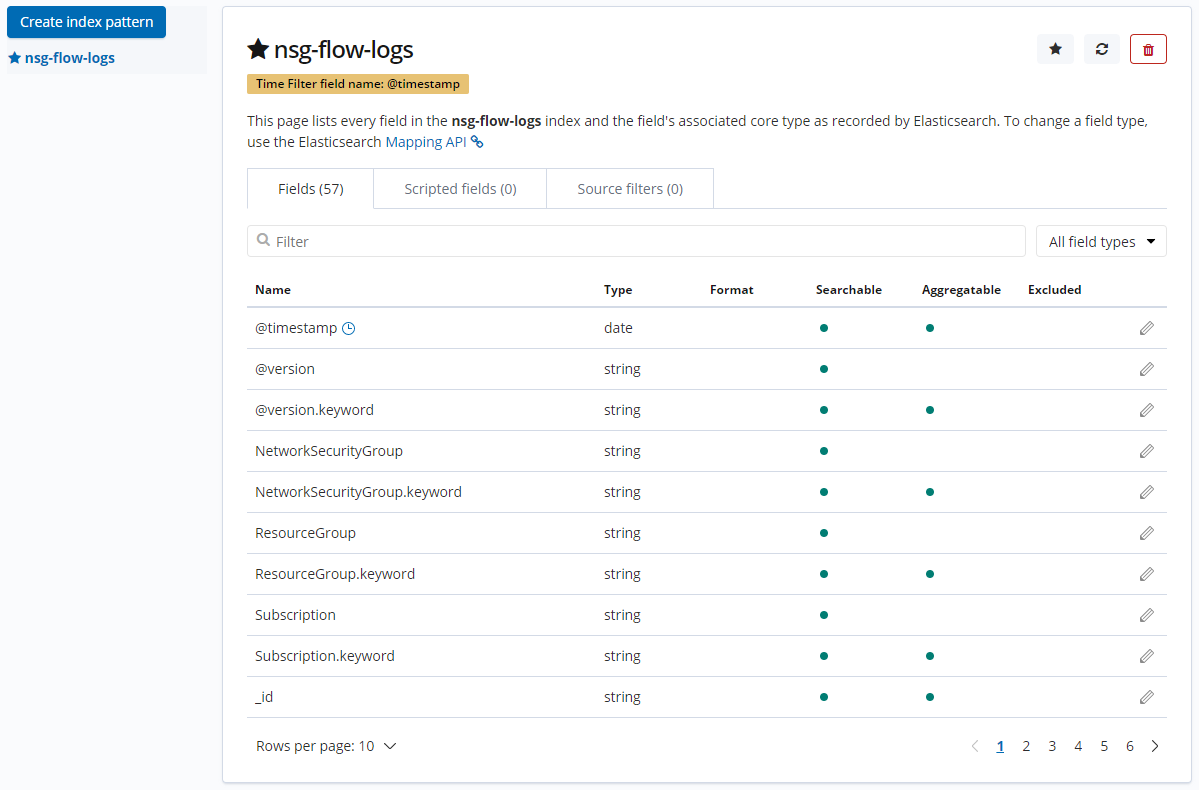

index 생성

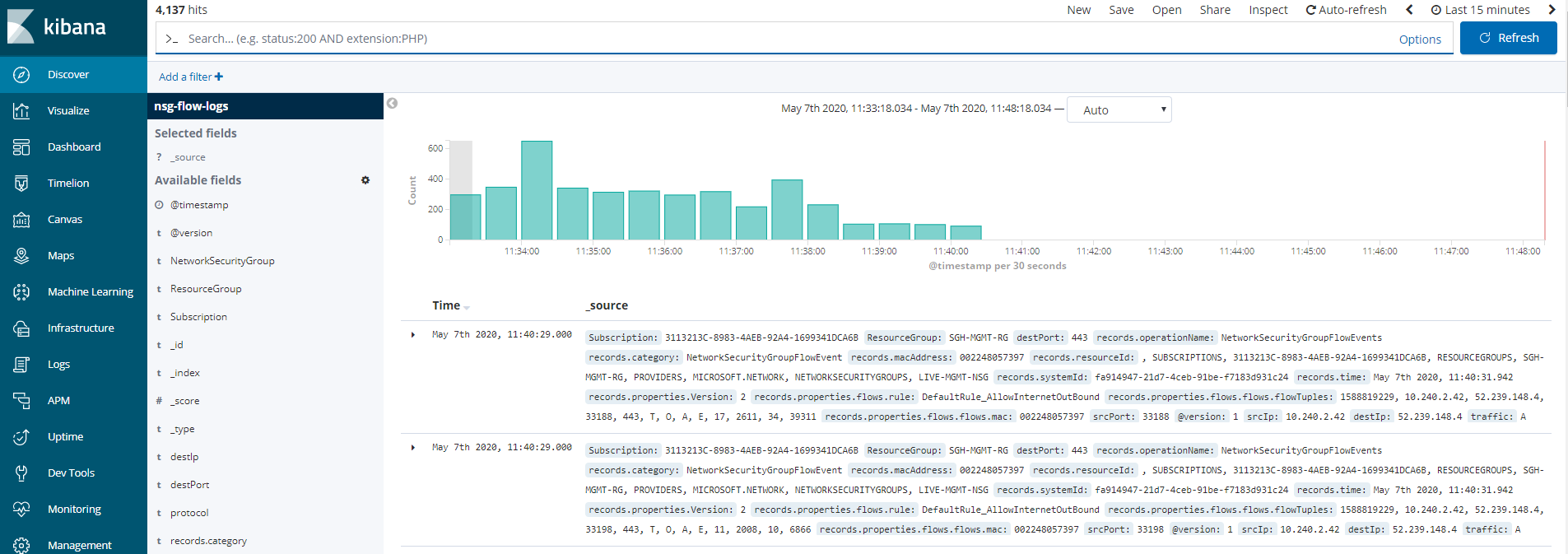

로그 확인



3. Appication GW (L7) 로그 추가

$ Logstash 설정

input {
   azureblob
     {
         type => "appgw-access"
         storage_account_name => "mgmtdiagsa"
         storage_access_key => xxxxxxxxxxxxxxxxxxxxxxxxx"
         container => "insights-logs-applicationgatewayaccesslog"
         codec => "json"
         # Refer https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-read-nsg-flow-logs
         # Typical numbers could be 21/9 or 12/2 depends on the nsg log file types
         # file_head_bytes => 21
         # file_tail_bytes => 9
     }
   }

filter {
 json {
      source => "message"
 }
 grok {
      match => [ "resourceId", "/%{NOTSPACE}/%{NOTSPACE}/%{NOTSPACE}/%{NOTSPACE:ResourceName}/%{NOTSPACE}/%{NOTSPACE}/%{NOTSPACE}/%{NOTSPACE:ApplicationGWName}" ]
 }
 mutate {
      remove_field => [ "resourceId" ]
 }
}

output {
  stdout { codec => rubydebug }
  elasticsearch {
        hosts => "localhost"
        index => "appgw-access-logs"
  }
}



[참고] Azure Application GW 로그 참고하여 logstash 구성

{ "timeStamp": "2020-05-07T09:00:06+00:00",
    "resourceId": "/SUBSCRIPTIONS/xxx/RESOURCEGROUPS/xxx/PROVIDERS/MICROSOFT.NETWORK/APPLICATIONGATEWAYS/xxx",
    "listenerName": "xx-https-listener",
    "ruleName": "xx-rt-https-rule",
    "backendPoolName": "xx-appgw-be-pool",
    "backendSettingName": "xx-http-setting",
    "operationName": "ApplicationGatewayAccess",
    "category": "ApplicationGatewayAccessLog",
    "properties": {
        "instanceId":"appgw_2",
        "clientIP":"1.1.1.1",
        "clientPort":46079,
        "httpMethod":"GET",
        "requestUri":"\/sockjs\/info",
        "requestQuery":"cb=dmw4q10n6g",
        "userAgent":"Mozilla\/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit\/537.36 (KHTML, like Gecko) Chrome\/81.0.4044.138 Safari\/537.36",
        "httpStatus":200,
        "httpVersion":"HTTP\/1.1",
        "receivedBytes":607,
        "sentBytes":368,
        "timeTaken":0.002,
        "sslEnabled":"on",
        "sslCipher":"ECDHE-RSA-AES256-GCM-SHA384",
        "sslProtocol":"TLSv1.2",
        "sslClientVerify":"NONE",
        "sslClientCertificateFingerprint":"",
        "serverRouted":"10.x.x.x:4000",
        "serverStatus":"200",
        "serverResponseLatency":"0.000",
        "host":"xx.xx.net"
    }
}
